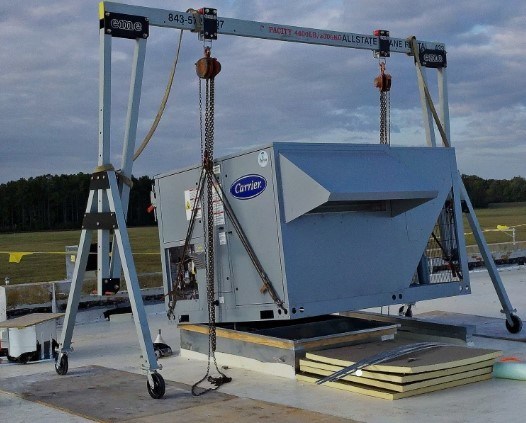

Manual Control Electric Portable Gantry Crane: Multi-Directional Movement & Heavy Load Capacity
Product Description
The trackless electric gantry is equipped with a manual control panel, and the operator can control various functions of the gantry through buttons and switches, such as lifting, driving, grabbing and releasing, etc.
The operator can use the remote control for wireless control, and control the movement and action of the trackless electric gantry from a distance, improving the flexibility and convenience of operation. The gantry has a positioning function, and the operator can accurately move it to the designated position through the precise positioning system for precise loading and unloading of materials.The trackless electric gantry is equipped with an anti-collision device. When it detects contact with an obstacle, it can automatically stop movement or change direction to protect the safety of the equipment and surroundings.The gantry is equipped with an alarm system. When abnormal conditions or failures occur, it can send out sound or light signals to remind the operator to take corresponding measures in time.The trackless electric gantry has an energy-saving function, and uses an efficient electric drive system and intelligent energy-saving control to minimize energy consumption.The gantry is equipped with a touch screen display panel, and the operator can control and set parameters through an intuitive graphical interface, simplifying the operation process.The operator can communicate and control with the trackless electric gantry through the interface connected to the computer or network to realize remote monitoring and management.The trackless electric gantry has a fault diagnosis function, which can automatically detect the status and performance of the equipment, and provide fault reports and maintenance suggestions to facilitate repair and maintenance work.
Drawing and Specification
| Capacity (t) |
Lifting Height (m) |
Span (m) |
Work Duty |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
| 1 |
3-10 |
2-10 |
A3 |
3.8 |
11 |
| 2 |
3-10 |
2-10 |
A3 |
3.4 |
11 |
| 3 |
3-10 |
2-10 |
A3 |
2.2 |
11 |
| 5 |
3-10 |
2-10 |
A3 |
2.7 |
11 |
| 10 |
3-10 |
2-10 |
A3 |
2.7 |
11 |
| 15 |
3-10 |
2-10 |
A3 |
1.8 |
11 |
| 20 |
3-10 |
2-10 |
A3 |
1.4 |
11 |
Main Features and Advantages
1. Lightweight, convenient, it can be manually installed on site
2. Only needs 4 bolts to make the 4 small parts together
3. Can complete the leg assembly within 2-3 minutes
4. 360 ° swivel caster for any position fasten
5. Available on all flat and bumpy floors
6. Simple structure, height and span can be adjusted
7. Very safe, and the trolley will not fall
8. Foldable, easy to store and transport
9. The side beams and legs are bolted to ensure stability of the crane
10. Corrosion-resistant, easy to clean, suitable for electroplating and clean room environment
11. It has got CE certification for overall safety, according to EN795 Class B standard design
12. Ergonomic design of the profiles, handles, etc.. And the operation is more secure
13. Lifting rated load 500kg-5000kg. Refer to technical parameters for specific reference
14. Various of sizes S / M / L / T standard configuration, can also be customized, components are interchangeable
15. If you need non-standard custom, please contact with our technical staff
Product Details
Package and Delivery
Our Service
1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.
2. Strict quality control system, supervision the work to ensure the best crane for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers can be your side do the installation guide and training.
FAQ
1.Which industries do you service?
We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.
2.Which areas do you service?
We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.
3.Which cranes are most suitable for outdoors?
The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.
4.What international certificate does your crane passed?
Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.
5.What is the best crane for my needs?
We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
