Detail Information

Capacity:	5-1000t, Customized	Lifting Height:	5m To 50m, Cumized
Span:	5m~60m, Customized	Application:	Outdoor
Main Electrical Parts:	Siemens / Schneider Brand	Power Source:	3 Phase 380V 50hz
Color:	Custom Made	Warranty:	2 Years
Control Method:	Pendent Button,wireless Remote,cabin Control	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	60m Span electric RTG cranes , 60m Span Mobile Gantry Crane , electric RTG cranes General purpose

Product Description

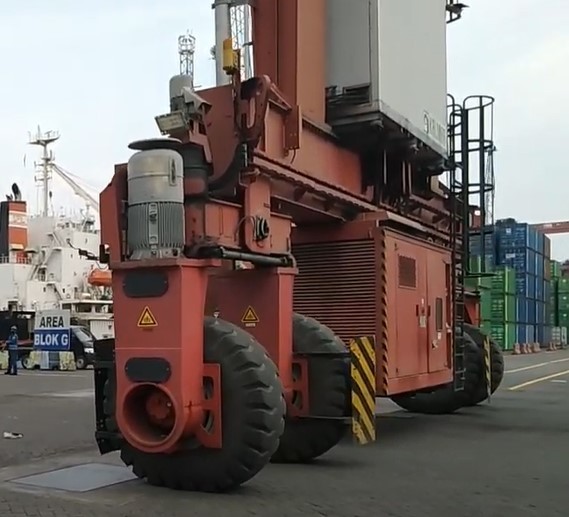

Customized (RTG) Mobile Gantry Crane With 5t~100t Load Capacity

General-purpose bridge and gantry cranes, especially cranes below 800T, have strong market competitiveness, and have designed and manufactured lifting equipment with high technical content and complex structures for many industries.

The gantry crane's upper bridge frame (including the main girder and end girder), outriggers, and lower beams are composed of parts. In order to expand the working range of the crane, the main girder can extend out of the outriggers to one or both sides to form a cantilever. A trolley with a jib can also be used to expand the working range of the crane through the pitch and rotation of the jib.

Drawing and Specification

5m~60m Span Electric RTG Cranes Mobile Gantry Crane 5t~100t General Purpose 0

Model	Capacity	Clear Height	Clear Width
EL 10	10T	4.4m (one layer HQ container) 6m (two layer HQ container)	3.2m
EL 30	30T	4.4m (one layer HQ container) 6m (two layer HQ container)	3.2m
EL 35	35T	4.4m (one layer HQ container) 6m (two layer HQ container)	3.2m
EL 40	40T	4.4m (one layer HQ container) 6m (two layer HQ container)	3.2m
	Customized	Customized	Customized
For 20ft, 40ft, 45ft, 50ft container, the standard design is lifting container by 4 units Chain slings. As options, the crane can be equipped with Lifting spreader as below: 1) Fixed type 20ft Lifting spreader 2) Fixed type 40ft lifting spreader 3) Telescopic spreader for 20ft / 40ft / 45ft / 50ft container

Features

1, The power source is 3-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is Class A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The Mobile Gantry Crane which has the special requirement for working conditions, can be manufactured following the contracts.

Modular Design

According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module, steel structure module, founction module, general module and etc. The standard module production ensures product stability of quality and shortens the delivery cycle.

Advanced Manufacturing Technology

Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.
Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.

High Reliability

The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.
The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

Safety Features

1. Automatic rectify deviation control
2. Weight overload protection device
3. Top quality polyurethane buffer
4. Phase protection
5. Lifting limit switch,cross traveling limit switch,long traveling limit switch
6. Voltage lower protection function
7. Emergency stop system
8. Current overload protection system
9. Lighting system
10. Audio and video alarm system

Package and Delivery

5m~60m Span Electric RTG Cranes Mobile Gantry Crane 5t~100t General Purpose 1

Product Certificate

5m~60m Span Electric RTG Cranes Mobile Gantry Crane 5t~100t General Purpose 2

5m~60m Span Electric RTG Cranes Mobile Gantry Crane 5t~100t General Purpose 3

FAQ

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.

Tag:

Place of Origin:	Henan, China
Brand Name:	Magicart
Certification:	CE, ISO, SGS, GOST, BV

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	High quality plywood crate and plastic woven cloth
Delivery Time:	According to customer needs
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000 sets per year
