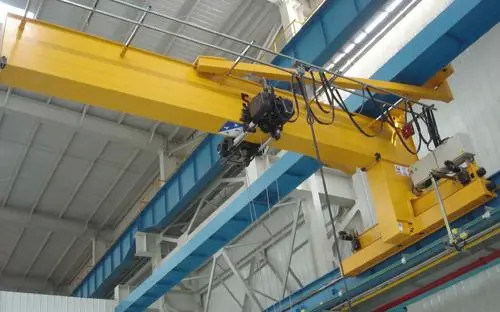

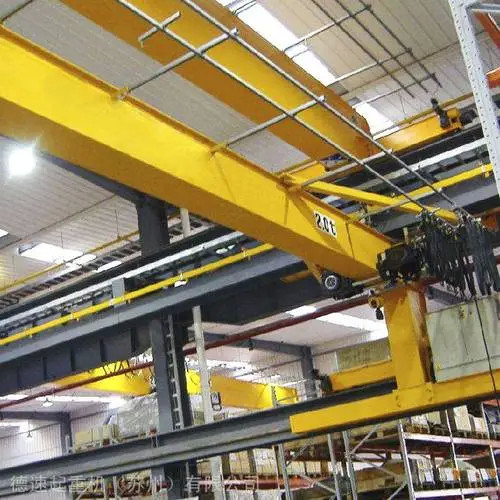

Jib Crane, Wall Traveling Jib Crane,1t~5t
Product Description
The wall type cantilever crane is also known as the wall crane. The advantage of the wall type cantilever crane is that it can be directly installed on the wall or column, or on the machine equipment, so it does not need to occupy any ground space. It is applicable to the warehouse, wharf and goods for short distance handling and loading. It provides ideal lifting machinery for steel structure plants or production lines. It is safe and reliable to use and flexible to rotate, so as to reduce the work intensity of workers and improve productivity.
The wall crane uses bolt angle iron connectors to fix the triangular support on the concrete wall or column, and the cantilever is hinged with the support. The structure is simple, the operation is convenient, and the working space is large. The slewing arm can be installed with an electric or manual hoist to lift the heavy objects. The electric hoist or chain hoist runs in a straight line on the I-beam of the slewing arm and lifts the heavy objects. The suspended heavy objects or their own pull rings are pushed manually to achieve rotation.
It is applicable to the warehouse, wharf and goods for short distance handling and loading. It provides ideal lifting machinery for steel structure plants or production lines. It is safe and reliable to use and flexible to rotate, so as to reduce the work intensity of workers and improve productivity.
Drawing and Specification
| Load Capacity (ton) |
Outreach (m) |
Max. Lifting height (m) |
Duty Class |
| 1 |
3~6 |
3~8 |
A3 or A5 |
| 2 |
5~35 |
3~25 |
A3 or A5 |
| 3 |
5~35 |
3~25 |
A3 or A5 |
| 5 |
5~35 |
3~25 |
A3 or A5 |
| 8 |
5~35 |
3~25 |
A3 or A5 |
| 10 |
5~35 |
3~25 |
A3 or A5 |
| 12 |
5~35 |
3~25 |
A3 or A5 |
| Customizable |
Customizable |
Customizable |
Customizable |
Advantage
1. Easy to operate
2. High efficiency
3. Consistent performance
4. Load bearing capacity
1. Full supporting triangular base is fixed by anchor bolts on cement base. Your free standing jib crane will be more stable than other type.
2. You can choose your trolley between electric chain hoist and electric wire rope hoist.
3. It is suitable for short distance and frequent transport work.
4. It works well in carry loads in an accurate location.
5. You can choose any series and lifting bearing free standing jibs in our specification according to your needs.
6. We are available to design your own non-standard customize jib cranes.
Package and Delivery
Installation and Commissioning
FAQ
Q1:What is your Installation Services?
Installation Services are available with all new machine purchases. We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine effectively.
Q2:What about your Guarantee of quality ?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken (not including man made).We offer lifetime after sale service
Q3: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference. Also we provide spare parts for sale if you need.
Q4:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided. All our products is professionally customized.
Q5: Can I visit your factory?
Sure, anytime! Our factory address is Xinxiang, Henan Province.
