Place of Origin: | Henan, China |
---|---|
Brand Name: | Magicart |
Certification: | CE, ISO, SGS, GOST, BV |
Model Number: | BH |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | High quality plywood crate and plastic woven cloth |
Delivery Time: | According to customer needs |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 sets per year |
Features: | All Hooks Work Separately & Simultaneously | Capacity: | 10~1200t, Size Is Customized |
---|---|---|---|
Span: | 5-110m, Customized | Working Class: | A5-A8 |
Color: | Customer Requirements | Control Method: | PLC Control, Remote Controller Or Cabin |
Application: | For Yacht, Boat, Ship Lifting And Handling | Power Supply: | 380v 50hz Three-phase A.C |
Main Electrical Parts: | Siemens, Schneider Or Other Famous Brand | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Highlight: | a5 rubber tired gantry crane,1200t rubber tired gantry crane,yacht handling rtg crane |

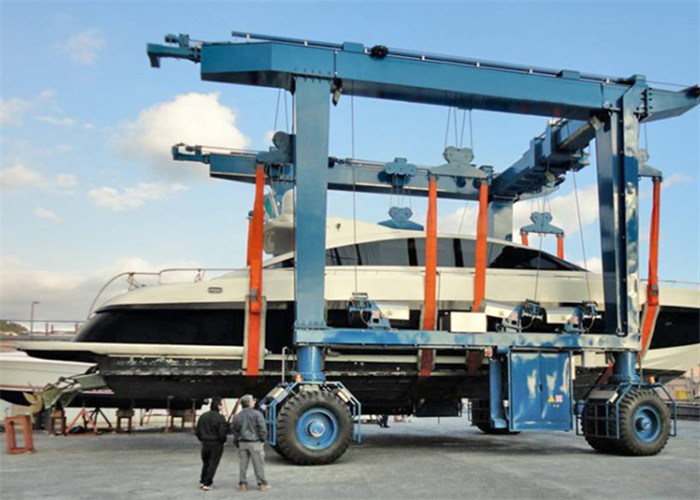

ISO SGS 30 Ton Marine Straddle Boat Hoist Crane Customized
Product Description
Boat hoist yacht lifting gantry crane includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height. According to different requirements of our customers, the Boat yacht Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water.
Drawing and Specification
Model | Capacity | Clear Width | Clear Height |
BH 10 | 10T | 4.9m | 5.1m |
BH 15 | 15T | 5.6m | 5.8m |
BH 25 | 25T | 5.6m | 5.8m |
BH 35 | 3.5T | 5.6m | 5.8m |
BH 50 | 50T | 6.4m | 6.6m |
BH100 | 100T | 8.4m | 8.1m |
BH150 | 150T | 9.0m | 9.4m |
BH200 | 200T | 9.6m | 10m |
BH250 | 250T | 9.6m | 10m |
BH300 | 300T | 10.2m | 10.6m |
BH400 | 400T | 11.0m | 11.4m |
BH500 | 500T | 12m | 12.4m |
BH600 | 600T | 13m | 13.4m |
BH700 | 700T | 14m | 14.4m |
BH800 | 800T | 15m | 15.4m |
BH1000 | 1000T | 17m | 17.4m |
Customized | Customized | Customized | Customized |
Feature
1. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
2. It also can put the boat in sequence quickly with small gap between each two boats.
3. Electrical system uses PLC frequency adjustment which can easily control every mechanism.
4. Control Methods: Cabin control / remote control or Cabin control + remote control.
5. It can adjust the width of the main girder according to the boat in case to handling different side boat.
6. This hoist own the performance of low expense, high performance, easy to operate and maintenance and so on.
Package and Delivery
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
