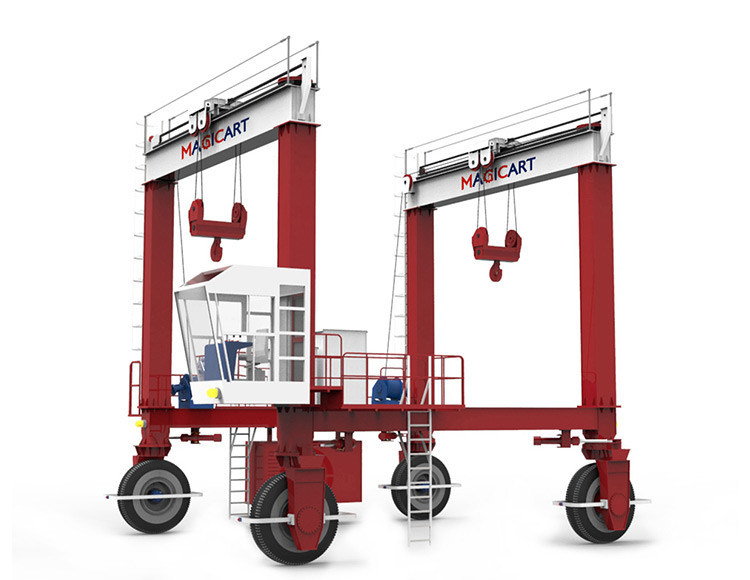

Double Beam Mobile Gantry Cranes

Basic Information
Place of Origin: Henan, China
Brand Name: Magicart
Certification: CE, ISO, SGS, GOST, BV
Model Number: DB
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: High quality plywood crate and plastic woven cloth
Delivery Time: According to customer needs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 sets per year
Detail Information
Capacity: 5-400t, Customized Lifting Height: 5-60m, Customized
Span: 5-100m, Customized Rated Lifting Moment: 50KN~3000KN
Lifting Mechanism: Electric Trolley Or Hoist Crane Feature: Mobile Double Girder Gantry Crane
Color: Customer Requirements Control Method: Pendent Button,wireless Remote,cabin Control
Application: Workshops, Factories, Indoor & Outdoor After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

Double Beam Mobile Gantry Cranes

,

400t Mobile Gantry Cranes

,

3000KN Rubber Tired Gantry Crane


Product Description

Fast Carrier FR Model RTG Crane 5-100t Rubber Tired Single Beam Gantry Crane



Product Description



Rubber tired gantry cranes offer greater value for less. With our vast offering of valuable features, options, and Customer Care services, you will benefit by reducing operational costs and improving your bottom line. You can utilize every square foot of your yard and facility with one machine. With options such as our Rubber Tired gantry crane can provide your operation with maximum flexibility, maneuverability and precision handling in the most confined spaces.Adopt advanced double speed or frequency double speed control. Make the start, acceleration and deceleration of crane stable, and furthest reduce the loaded goods swing. Make the loading positioning faster and more accurate.





Drawing and Specification



Double Beam Mobile Gantry Cranes 0

Model Capacity Clear Height Clear Width
DB 10 10T 2m~9m 3m~12m
DB 20 20T 2m~9m 3m~12m
DB 30 30T 2m~9m 3m~12m
DB 50 50T 2m~9m 3m~15m
DB 70 70T 2.5m~12m 3m~15m
DB100 100T 2.5m~12m 3m~15m
DB150 150T 3m~15m 3m~18m
DB200 200T 3m~15m 3m~18m
DB250 250T 3m~15m 3m~18m
DB300 300T 5m~20m 5m~25m
DB400 400T 5m~20m 5m~25m
  Customized Customized Customized





Main Features



• Capacity 10~400t, size is customized

• 2 hooks works separately, simultaneously

• Special for long objects and short objects

• PLC control, Remote controller or cabin

• Powered by diesel engine or cable access





Application



• Concrete precast plant, Bridge construction

• Wind power industry,Long Pipe Fittings

• Various factories, Indoor /Outdoor Hoisting





Advantages



• High loading and unloading Efficiency

• Easy maintenance, Low operating cost

• Operation process greatly reduced





Package and Delivery



  • Electric parts and electric hoist are packed by strong plywood crate Main beam and end truck are packaged in plastic woven cloth.
  • Or according to your demand.
  • Special packing services can be negotiation.

Double Beam Mobile Gantry Cranes 1


Double Beam Mobile Gantry Cranes 2

Double Beam Mobile Gantry Cranes 3

Double Beam Mobile Gantry Cranes 4

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
