3t 5t 10t BMH Type Semi Gantry Track Crane Semi Portal Crane Travelling
Product Description

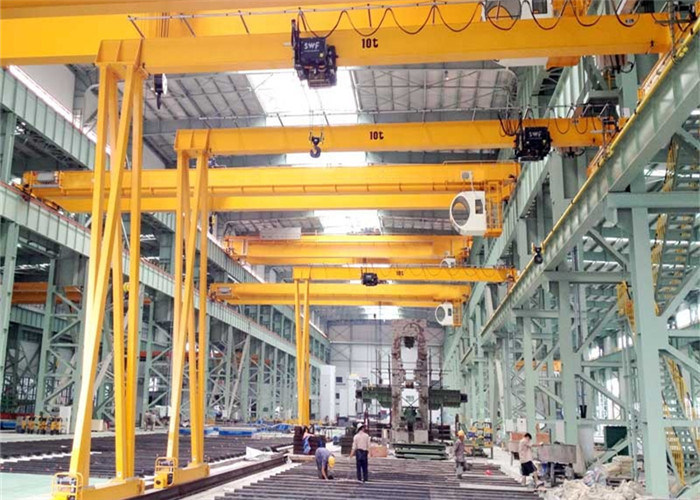

BMH model single girder semi-gantry crane is developed from MH model gantry crane and LDA model overhead crane, it is a kind of track travelling mid-duty type gantry crane, the one beam end traveling on wall mounted track, another beam end traveling on ground track, the capacity for 2t to 10t, span from 7.5m to 20m, working temperature within -20--+40 centigrade. This semi gantry crane is commonly used gantry crane, it be used in outside/inside warehouse for loading/unloading and lifting material. The control models are pendant pushbutton control or wireless remote control.
Drawing and Specification
| The general details of semi gantry crane |
| Span(rail to rail center) |
10m~20m or others |
| Cantilevers |
None |
| Lifting height |
6m, 9m or other height |
| Capacity |
2t |
3t |
5t |
8t |
10t |
| Lifting speed(m/min) |
8, 8/0.8 |
8, 8/0.8 |
8, 8/0.8 |
4, 4/0.4 |
7/0.7 |
| Cross travelling speed(m/min) |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
| Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
| Duty Class |
A3/A4 |
| Power source |
380V, 50HZ, 3 phase (or other standard) |
| Working temperature |
-20~40°C |
| Control model |
Pendant pushbutton control or wireless remote control |
Features
1. The crane beam and leg are box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding
2.The lifting mechanism(electric hoist) of single girder overhead crane, the gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability
3. The main upward/downward limit switch & second upward limit switch of hoist
4. The electrical control box & control handle, the electrical contactors are Siemens brand, the control handle has on/off & emergency stop buttons
Application
• Workshop, Concrete plant, all factories etc
• For assembly, loading, unloading area etc
• Run on the rail to cover whole area
Package and Delivery
Our Services
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days . It is according to quantity and size.
Q: How can I get accurate quotation.
A: Please tell us the crane's Span, working condition , temperature, Load capacity , Lifting height, meterial and so on. The more detailed the better.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment or L/C at sight.
