Detail Information

Capacity:	1-20t, Customized	Span:	6-30m, Customized
Lifting Height:	5-30m, Customized	Class:	A3~A8
Working Environment:	-25℃~+40℃	Color:	Customer Requirements
Power Supply:	Cable Reel	Long Travelling Speed:	47.1m/min, Customized
Lifting Mechanism:	Hoist Trolley Or Winch Trolley	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	15t Double Girder Gantry Crane , 10t Double Girder Gantry Crane , 5t Gantry Crane With Grab

Product Description

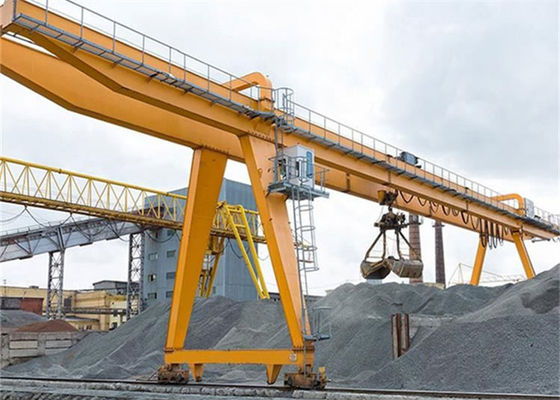

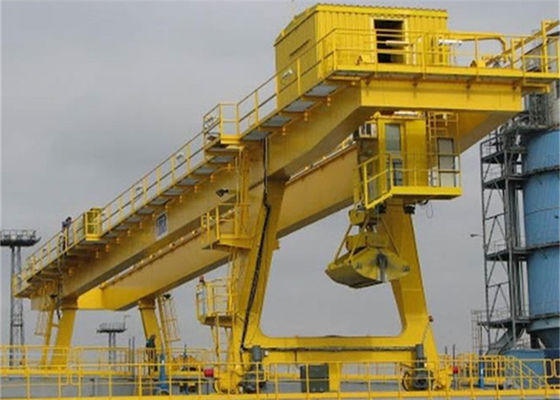

Loading And Unloading Bulk Cargo 5t 10t 15t Double Girder Gantry Crane With Grab

Product Description

Double beam girder rail track grab bucket garbage gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system, the gantry is box-shape structure, the track is at the side of each girder and the leg is divided into type A and type U according to user’s requirements. The control method could be ground control, remote control, cabin control or both, in the cab there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air condition, acoustic alarm and inter phone which can be furnished as required by users. This double girder gantry crane is beautiful design and durable and widely used in open-air warehouse, of course, also can be used indoors, but please let us know the condition in your workshop, just tell us your demands, we can design the most suitable crane for you.

Drawing and Specification

15t Double Girder Gantry Crane With Grab 0

Lifiting Capacity			t	3	5	10	16

Span			m	12-24	12-30

Lifting Height			m	6/9	6/9, 9

Speed	Crane Traveling	Pendant	m/min	20

		Cabin		20, 30, 45	20, 30, 40	30, 40

	Hoist Trolley	Lifting		8, 0.8/8	8, 0.8/8	7, 0.7/7	3.5, 3.5/0.35

		Traveling		20

Work Duty				A4

Recommanded Crane Rail				P24, P38		P38, P43

Power Supply				3 Phase 380V 50Hz or Design

Product Advantage

1.Double box beam with steel legs moving through the ground beam as crane travelling system

2.The camber of main beam will be designed as Span*1-1.4/1000.

3.Steel Material: Q235 or Q345

4.Shot-blasting Sa2.5 for main girder and supporting beam

5.Epoxy zinc rich high quality painting.

6.Electrification and outfitting

7.Brand: CHINT SIEMENS Schneider

8.Conductor power supply: Cable Reel or bus bar.

9.Frequency conversion, double speed, single speed, and all hoist and crane movements are independent and can be run simultaneously different design due to meet crane applications

10.Whole layout provides good protection against special working environment. Such as gas workshop, plants, warehouses etc.

Operation mode

All operation is completed in the driver's cabin and the cab is commodious. Our company is able to carry out new design and production of non-standard equipment. Different kinds of grabs with high grab force for all finely materials: four-cable grab; electric motor grab; electric hydraulic grab, etc.

Details Images

As a crane factory, we can provide all kinds of crane accessories, and have a price advantage and high cost performance.

Package and Delivery

15t Double Girder Gantry Crane With Grab 2

Product Certificate

15t Double Girder Gantry Crane With Grab 3

15t Double Girder Gantry Crane With Grab 4

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?
A: 12 months from cranes accepted;

5. Q: Do you have engineer oversea installation service?
A: Yes; We have;

6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
