LX Model Electric Single Girder Suspension Overhead Traveling Bridge Crane 10 tons
Product Description

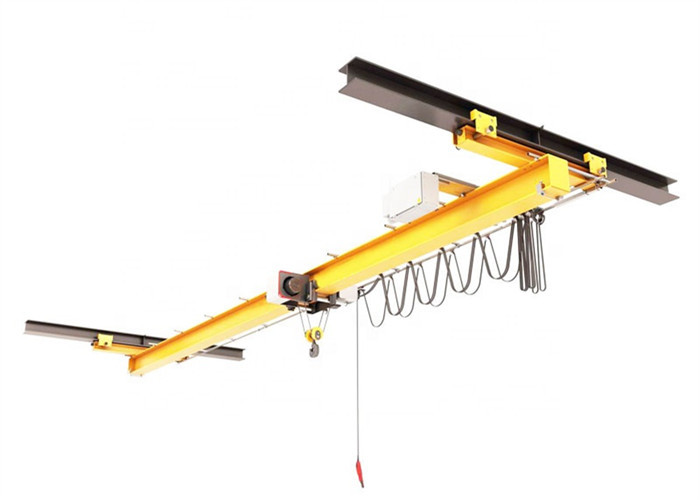

This LX model single girder suspension overhead crane 10 tons is mainly used in the location where is no possible install columns to support the overhead crane.Usually, its running rails are suspended from the roof of the building and the crane end beams travel on the bottom flange of the runway rail. It is a light duty overhead crane with lifting capacity no more than 10 tons.
Drawing and Specification
| Lifting Capacity (t) |
0.5-12.5 |
| Lifting Height (m) |
6-30 |
| Span (m) |
3-16 |
| Crane Traveling Speed (m/min) |
20/30 |
| Hoist Traveling Speed (m/min) |
| Lifitng Speed (m/min) |
0.5-10t |
8, 0.8/8 |
| ＞10t |
7, 0.7/7 |
| Diameter of Wheels |
0.5-10t |
Φ134 |
| ＞10t |
Φ154 |
| Recommand Rail |
0.5-10t |
120a-145c |
| ＞10t |
140b-163c |
| Power Supply |
3 Phase 380V 50Hz or Design |
Safe features of single girder overhead crane
✔ Weight overload protective device
✔ Top quality polyurethane buffer
✔ Crane traveling limit switch and lifting limit switch
✔ Low voltage protection function
✔ Emergency stop system
Main parts
Product Process
Package and Delivery
FAQ
1, What information should I provide to get the price?
Specific parameters such as lifting capacity, lifting height, span, cantilever length, power supply voltage, control method, etc. And if you can give us your design drawing, that will be very helpful to get an quotation.
2, Which kind crane can you provide?
Weihua is a leading manufacturer with experienced designers, engineers and a 600- people R&D team to design and manufacture industry crane with your customized parameters, not include truck crane and tower crane.
3, What services can you provide?
We have a complete pre-sales&after-sales service system, and our engineers and installation team are available overseas to guide insite installation and comissioning.
4, Which brand are the crane parts and components?
We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have the world's leading machining, forging and welding machinery and processes.
5, Do you sell crane accesorries?
Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, busbar and so on.
